適用種類 Applicable type
●CNC線切割機、雕刻機、雕銑機、高速主軸 ●CNC power generating machine, engraving machine, engraving and milling machine high speed spindle
●PCB鉆孔機、銑板機 ●PCB drilling machine, milling board machine
●激光加工設備 ●laser machining machine
●服裝機械、印刷機械 ●Costume machinery, prining machinery.
●注塑機械、中高頻機械 ●Plastic injectine molding machine, High frequency inductor
●粉末涂裝設備 ●Powder coating machine
●模具冷卻 ●Mould cooling
特性與功能Features and Functions
●能精確控制機械加工溫度，提高加工精度，降低成本
●無需冷卻塔，節省空間
●采用防銹水循環系統
●獨立式冷卻機具有完整的吸送水系統，只要連接水管，就可以與設備連機工作
●Capable of precisely controlling the machining temperature so as to improve machining accuracy and reduce cost
●No need for cooling tower, save space
●Water circuiting is made of the material which can prevent from rusting
●Independent water pumping and electric control systems so that any machine can be worked together with this
●equipment only by connecting them through pipes


備注 Remark
●制冷能力是在環境溫度35℃，進水溫度25℃，出水溫度20℃的條件下測得
●水冷機的吸水口加裝過濾器
●水冷機應在通風良好，無粉塵及腐蝕性氣體，四周無雜物的場所
●本機勿使用腐蝕性液體
●以上機組使用環境為5~42℃,42℃以上屬高溫機組，外形尺寸及相關參數會有所變更，請選型時注意
●參數表內為本公司標準機型，本公司接受客戶特殊訂貨

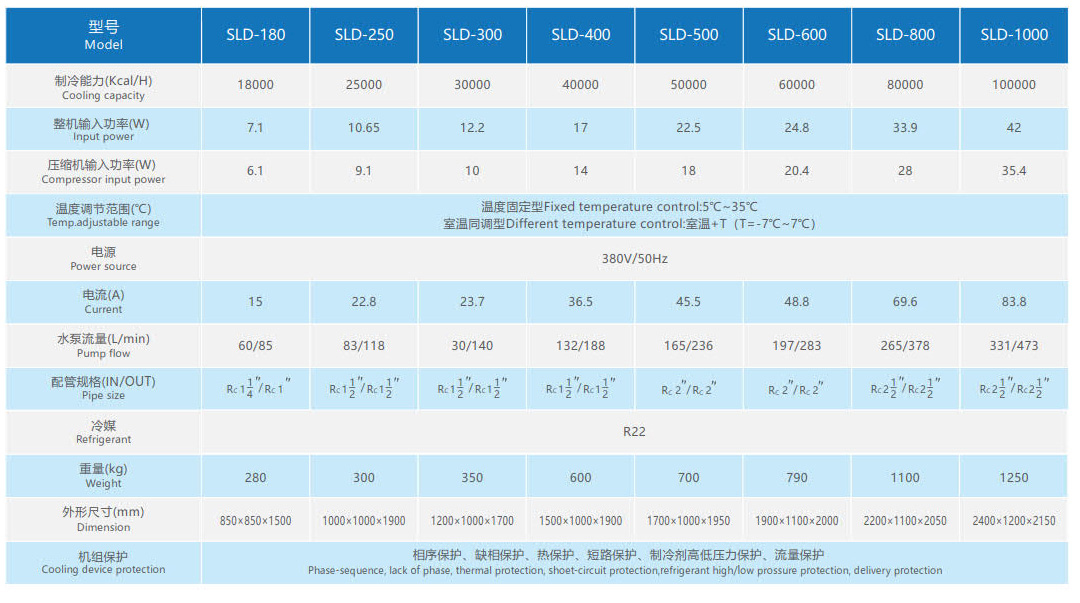

●Above cooling capacity base on the ambient temperature 35℃,water inlet temperature 25℃, water outlet temperature 20℃
●Filter should be mounted on water inlet of water chiller
●Water chiller should be placed on airiness, no corrosive gas and no sundries area
●Do not use corrosive liquid
●The chillers introduced above can be used within 5~42℃, if the chillers work above 42℃, the dimension and relative paramater will be changed, please pay more attention to the specification when making a choice
●Chiller type on the above table is standard, speical order on requst
